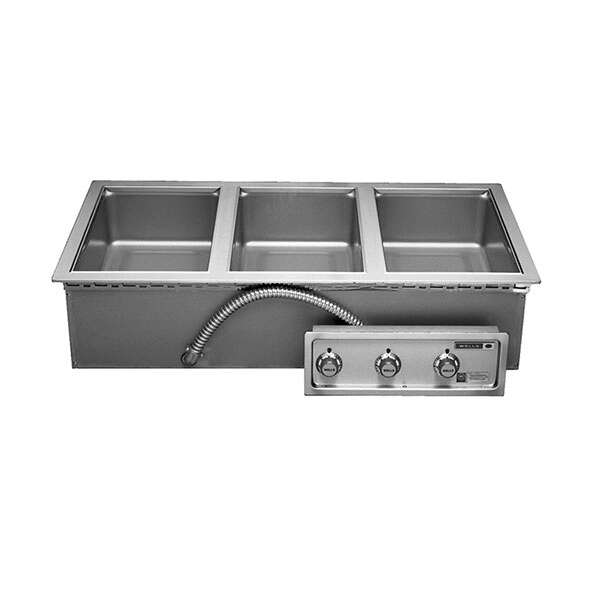

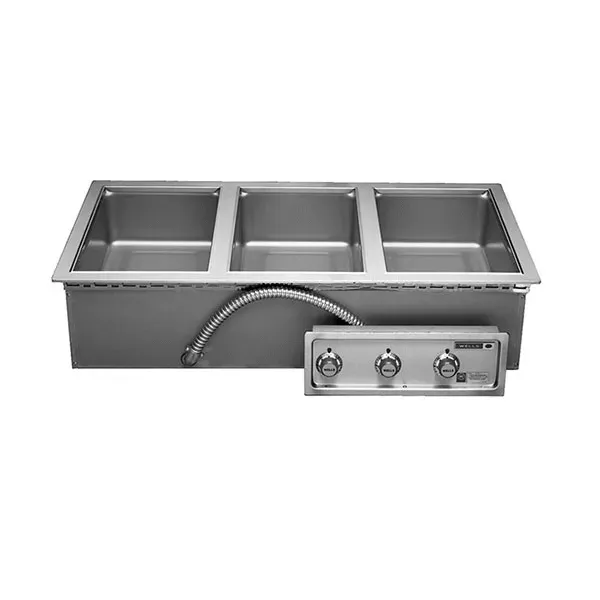

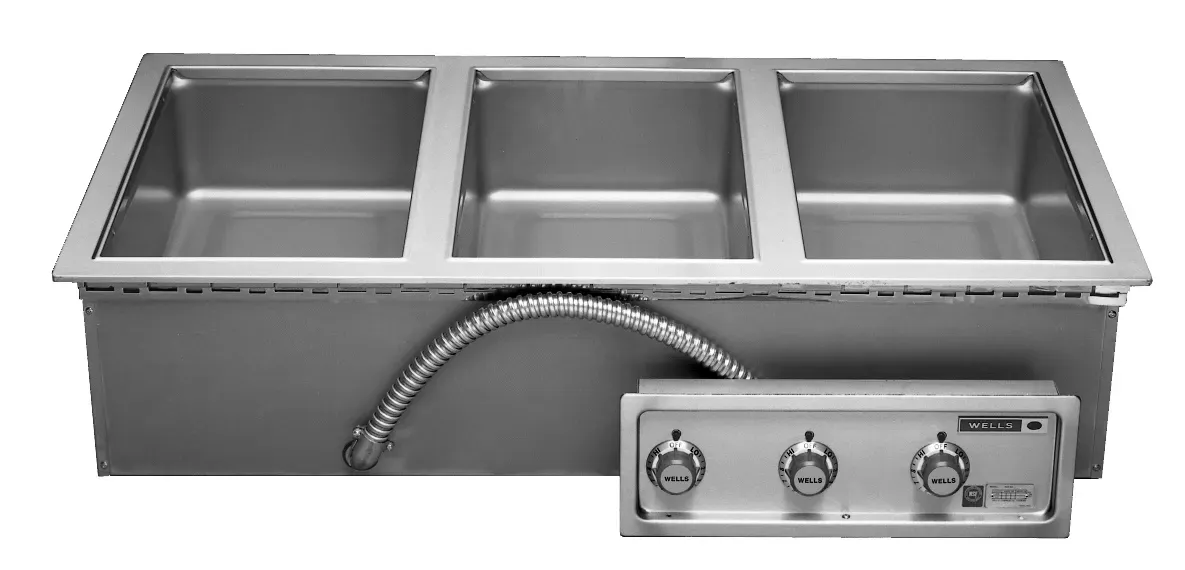

Wells, MOD-300TDM/AF, Hot Food Well Unit, Drop-In, Electric, 208-240V, 43.5" W, 23.62" D

SKU #: MOD-300TDM/AF
Description
Wells MOD-300TDM/AF heavy-duty, top-mount, drop-in, Modular food warmer is designed to hold heated foods at safe and fresh serving temperatures. Unit Accommodates 12” x 20” standard food pans or equivalent fractional inset pans and are designed for wet or dry operation. One-piece stainless steel top flange and heavy-gauge, deep-drawn stainless steel warming pans are standard features on all models. WellsLoks are standard for quick and easy installation. Sides, front, back, and bottom are fully insulated, Individual controls for each well, High-limits prevent overheating, and powerful tubular heating elements are located under the warming pans for quick, efficient, and even heating. Three pans, Thermostatic control, Drain with Manifold, Auto Fill, 208/240V
?
Specifications
Water Inlet Size
0.25 Inch
Area (in)
12" x 20"
Wattage
1650 watts
Phase
1PH
Amps
20.6 amps
Voltage
208-240v
Cutout Height
22.5 Inch
Depth
23.62"
Number of Wells
3
Capacity
3 full size pan
Width
43.5"
Cutout Depth
9.75 Inch
Height
9.75"
Material
aluminum steel, stainless steel
Design
built-in, drop-in
Drain Type
Drains With Manifold
Power Type
Electric
Plug Type
Field Wired Per Local Code
Product Type
hot food well unit
Features
insulated
Safety and Compliance
NSF, UL
Water Connection Source Type
Plumbed Water Line
Shape
rectangular
Temperature Control
thermostat controls, thermostatic controls
Installation Type
top mount
Drain Location
Underneath
