Description

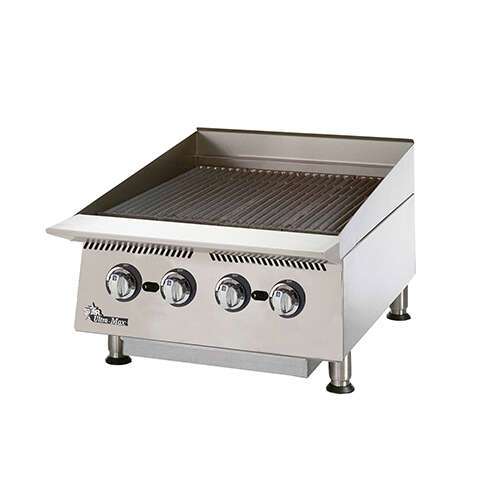

The Ultra-Max® radiant and lava rock charbroilers are constructed in the U.S.A. with a corrosion-resistant stainless steel body. The charbroilers will either use lava rocks or heavy- duty radiants to transfer heat to product. Grates are adjustable per section to be enclined or flat. The units feature cast iron burners which produce 20,000 BTUs per six 6 inches of width and have adjustable valves and a standing pilot. Units will be shipped being set up for Natural Gas, and will include field conversion kit for LP gas. Standard gas connection is 3/4-inch N.P.T. For lava rock models, a five 5 pound bag of lava rocks will be provided for each twelve 12 inches of width.

Specifications

Gas Inlet Size	0.75 Inch
Height	18"
Area (in)	24 Inch X 30.63 Inch X 18 Inch
Length	24"
Cooking Area Plate Depth	24.0 Inch
Width	24.0 Inch
Depth	30.63
Number of Controls	4
Number of Burners	4 burners
BTU	80000.0 BTU
Burner Material	Cast Iron
Grate Type	Cast Iron
Product Type	charbroiler
Design	Countertop, Indoor
Power Type	gas
Durability and Resistance	Heavy-Duty
Radiant Material	Lava Rock
Charbroiler Type	Lava Rock
Base Type	Legs Only
Features	Made in USA
Control Type	Manual
Gas Type	Natural Gas
Material	Stainless Steel
Safety and Compliance	UL EPH Classified
