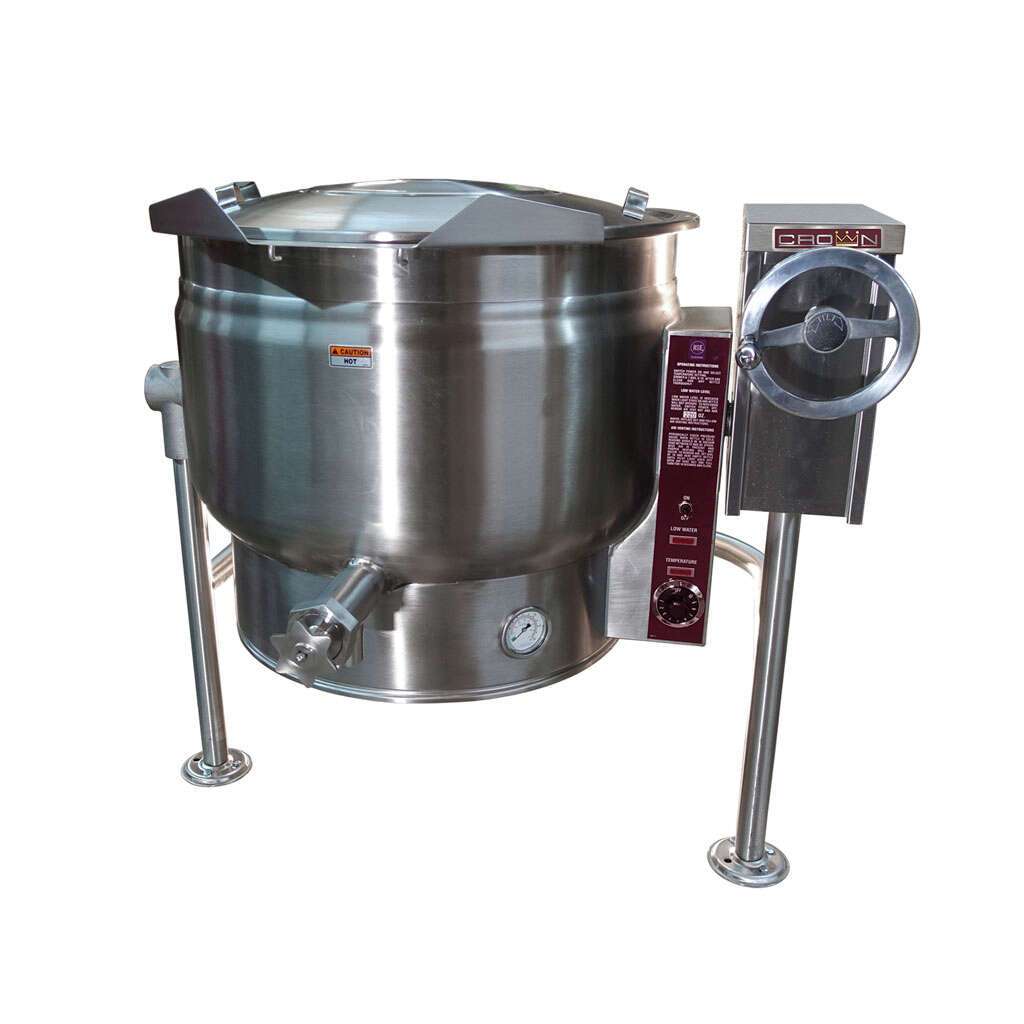

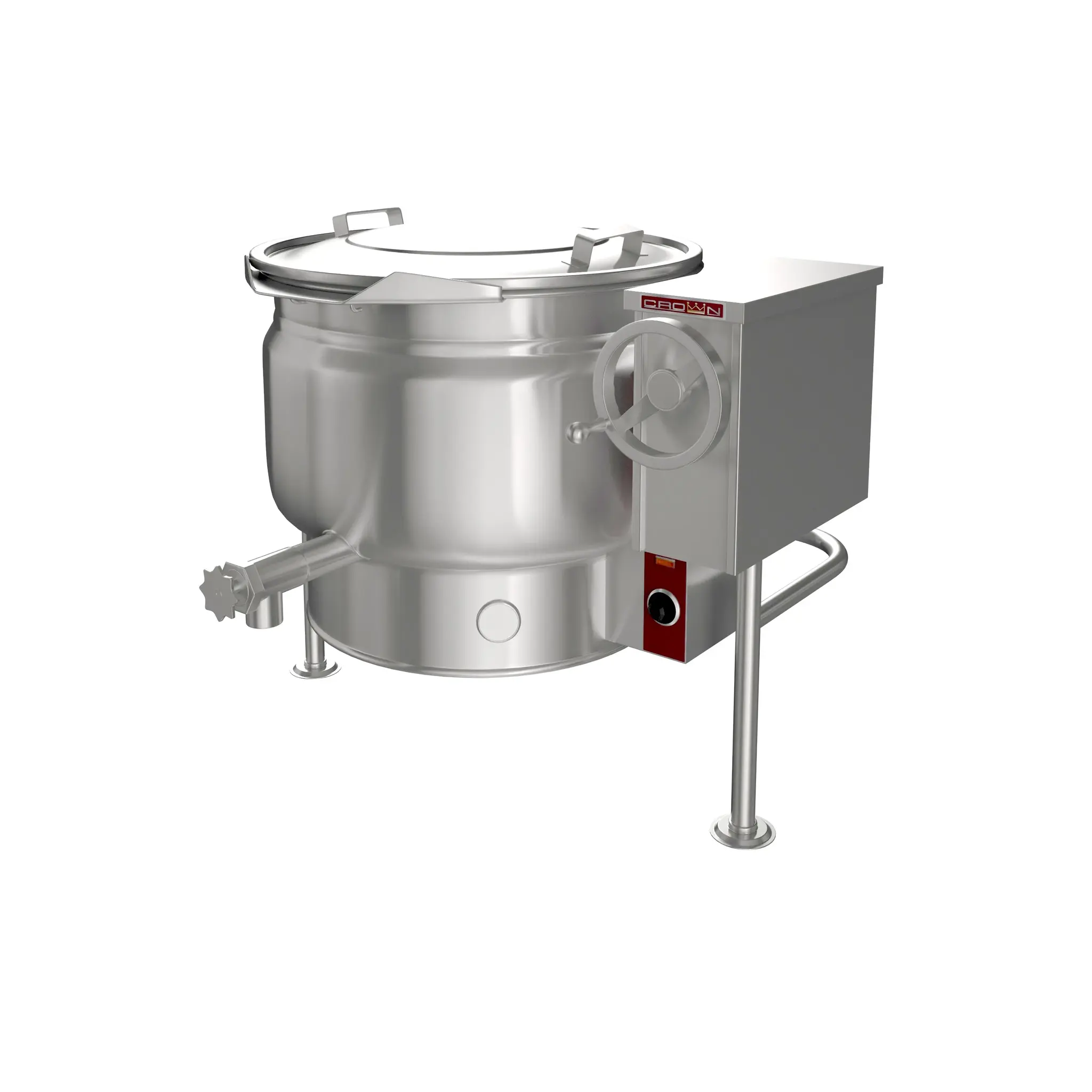

Crown Steam, ELT-40F, Electric Steam Kettle Tilt Tri-Leg, 208V, Tilting, Freestanding

SKU #: ELT-40F
Description
Experience the unmatched performance of these Crown kettles, designed specifically for efficiency and ease of use. With their self-generating, electric, tilting, full-jacket construction, these kettles ensure optimal cooking results while maintaining a low height for convenient access. The innovative double-walled interior creates a steam jacket around the kettle, containing factory-sealed distilled water for superior thermal management. Crafted from all-welded, #4 finish stainless steel, type 304, these kettles not only offer durability but also a sleek appearance. The kettle’s hemispherical bottom design promotes exceptional heat circulation, ensuring uniform cooking every time. The console, made from drip-proof stainless steel, is supported by a robust frame of 1-5/8” (41 mm) diameter stainless steel pipes, complete with adjustable legs for secure flooring attachment. Ease of operation is a hallmark of this design. The kettle pivots effortlessly on a trunnion connected to an advanced tilt mechanism, allowing for a full 90-degree tilt to ensure complete emptying. The self-locking tilt mechanism guarantees a positive stop action, providing both safety and reliability. For high-acid cooking applications, the kettle liner is standard with type 316 stainless steel, reflecting our commitment to quality. The integrally mounted controls include a user-friendly power switch, thermostat, pilot light, low water indicator, vacuum/pressure gauge, safety relief valve, and low water shut-off—everything you need for seamless operation. With removable heating elements and a wide temperature range of 165°F to 285°F (74°C to 140°C) at a maximum pressure of 50 psi (345 kPa), these kettles are the ultimate choice for any commercial kitchen. Investing in a Crown kettle means investing in quality, efficiency, and superior culinary results. Make the smart choice today!
?
Specifications
Number of Steam Kettles
1
Wattage
18000
Phase
1PH
Voltage
208V
Depth
37.75"
Height
38"
Kettle Capacity
40 Gallon
Area (in)
41 in X 37.75 in X 38 in
Width
41"
Amps
86.5
Safety and Compliance
ASME-U, cCSAus, NSF
Tilt Mechanism
Crank
Power Type
electric
Design
Freestanding, Indoor Only
Steamer Type
Generator
Product Type
kettle
Base Configuration
Legs
Control Type
Manual
Material
stainless steel
Steam Kettle Type
Standard
Style
tilting
Features
with full jacketed option
