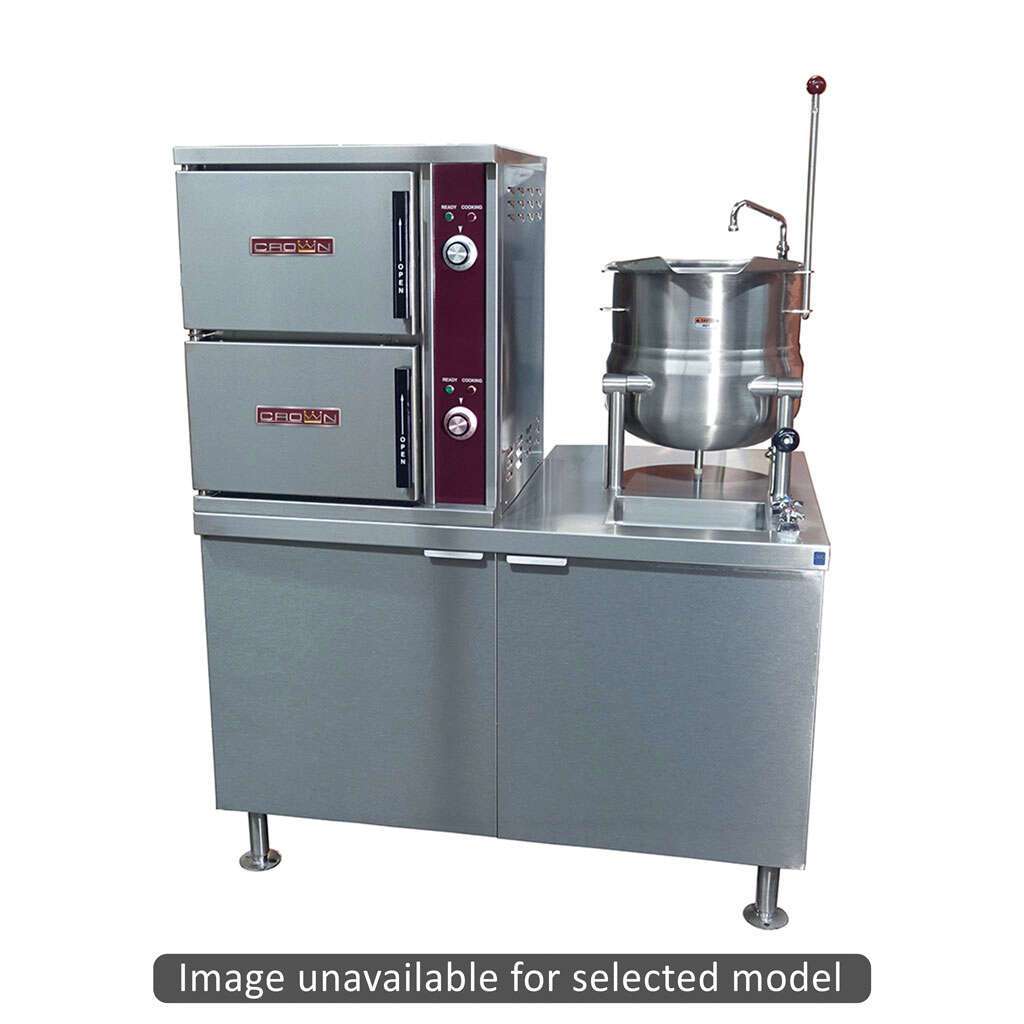

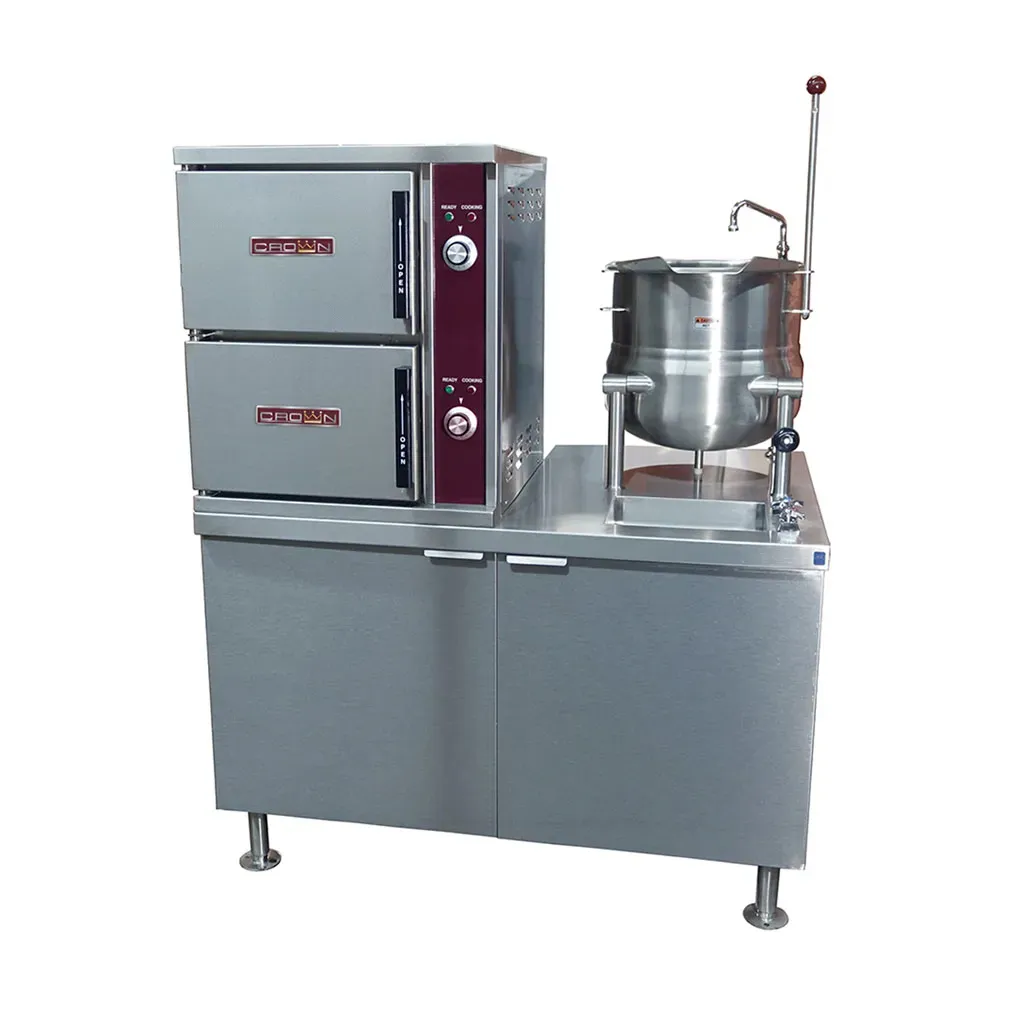

Crown Steam, ECX-10-6, Electric Boiler Convection Steamer, 208V, Freestanding

SKU #: ECX-10-6
Description
Discover the exceptional quality of Crown convection steamers, designed to elevate your cooking experience with unparalleled efficiency and precision. Each unit is equipped with a tilting kettle mounted on a robust modular electric steam boiler base. Crafted from high-grade stainless steel type 304 with a luxurious #4 finish, our steamers feature a deck-mounted faucet valve, a versatile swing nozzle, and an integral sink with a common drain, ensuring convenience at every turn. Experience outstanding performance with doors that boast a removable inner liner of stainless steel, complemented by a full perimeter gasket seal. The outer shell is a single, all-welded piece, designed for durability and hygiene. Our positive lock and seal mechanism, along with a stainless steel drip trough connected to the drain, expertly collects condensate when the doors are opened, keeping your workspace clean and efficient. Each cooking chamber is constructed from fully welded, type 316 stainless steel, ensuring longevity and is fully insulated for optimal heat retention. Removable stainless steel pan supports further enhance usability. Control is at your fingertips with a fully removable side panel providing easy access to steamer controls. Each compartment is equipped with a 60-minute mechanical timer paired with illuminating pilot lights to indicate readiness and cooking status. Safety and efficiency are paramount; the steam flow will automatically pause when the compartment door is opened during cooking, reactivating seamlessly when closed. An audible signal demarcates the end of the cooking cycle, ensuring you never miss a beat. Our cabinet base is engineered with integrity, featuring an all-around painted angle frame and reinforced mounts for the kettle and boiler. With hinged doors that secure with magnetic latches, the unit sits confidently on 6-inch (152 mm) stainless steel legs fitted with adjustable flanged feet to stabilize it firmly on the floor. The boiler controls demonstrate advanced engineering, including automatic water level control, an accurate pressure gauge, water gauge glass, meticulous operating pressure control, safety high-limit pressure control, and a reliable safety relief valve. You'll also benefit from our standard water treatment system, a split water line, CSD-1 boiler controls, and automatic blowdown features that ensure peak performance. Rest assured, your investment is safeguarded with a boiler that is both ASME code stamped and National Board registered, guaranteeing compliance with the highest standards of safety and reliability. Elevate your culinary operations with the precision and quality of Crown convection steamers—where excellence meets innovation.
?
Specifications
Steam Return Size
0.75 Inch
Number of Steam Kettles
1
Capacity
10 pan, 6 gallon
Compartments
2 compartments
Drain Outlet Size
2 Inch
Voltage
208V
Depth
33"
Wattage
36000
Phase
3PH
Area (in)
44 in X 33 in X 65.13 in
Width
44"
Kettle Capacity
6 Gallon
Height
65.13"
Amps
99.9
Safety and Compliance
ASME-H, cCSAus, NSF
Steam Type
boiler
Steamer Type
Convection
Product Type
convection steamer
Power Type
Electric
Design
Freestanding, Indoor Only
Tilt Mechanism
Lever
Control Type
Manual
Material
stainless steel
Steam Kettle Type
Standard
Features
with 2/3 jacketed option
