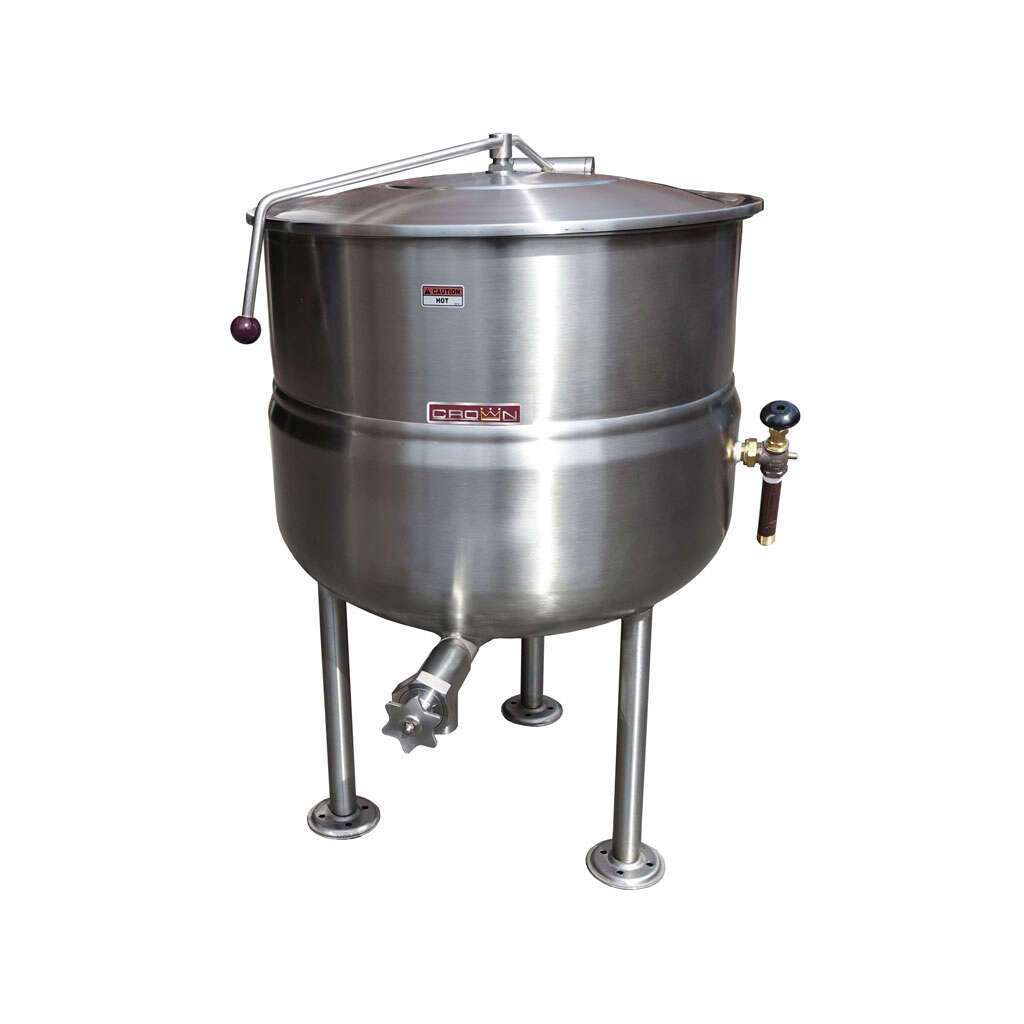

Crown Steam, DL-20, Direct Steam Kettle, Freestanding

SKU #: DL-20
Description
The Crown kettle line features an expertly designed double-wall interior that creates a highly efficient steam jacket around the lower two-thirds of the kettle. This innovative design, along with a hemispherical bottom, ensures exceptional heat circulation for optimal cooking performance. Crafted for durability and stability, each unit is mounted on robust stainless steel tubular legs, featuring adjustable four-hole flanged feet for secure floor mounting. The entire structure is constructed from premium all-welded satin finish stainless steel, type 304, while the inner liner is engineered from standard 316 stainless steel, making it ideal for high-acid content cooking. Experience unmatched convenience with our 2-inch (50 mm) sanitary draw-off valve, equipped with a perforated strainer to ensure efficiency and cleanliness. The spring-assisted, hinged, counterbalanced stainless steel domed cover adds an extra layer of ease to your cooking processes, and a faucet bracket is also included for your convenience. Elevate your culinary experience with the Crown kettle, where quality meets functionality.
?
Specifications
Steam Return Size
0.5 Inch
Steam Inlet Size
0.75 Inch
Number of Steam Kettles
1
Kettle Capacity
20 Gallon
Area (in)
22.75 in X 28.75 in X 37 in
Steam Inlet Pressure PSIG
5 Pound per square inch
Safety and Compliance
cCSAus, NSF
Power Type
direct steam
Steamer Type
Direct Steam
Design
Freestanding, Indoor Only
Product Type
kettle
Base Configuration
Legs
Material
stainless steel
Steam Kettle Type
Standard
Tilt Mechanism
Stationary
Features
with 2/3 jacketed option
